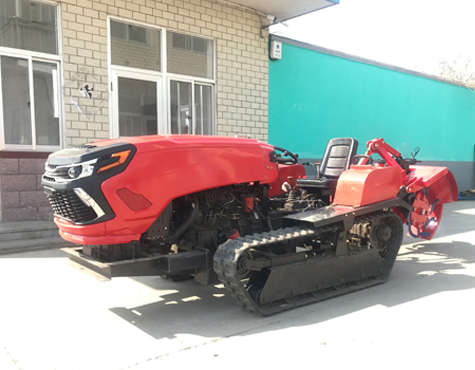

60 HP Dry-land Crawler Tractor

Machine Introduction:

The frame design is reasonably made of thickened steel plates, which are sturdy and durable, reducing engine vibration and extending machine life

Extending the base frame makes the grounding area of the track longer and wider, and also ensures the stability before and after the machine, making climbing, crossing ditches, and other complex terrains safer and smoother.

The engine adopts multiple engines such as 4-cylinder 495 Laidong, Huichai, and others.

The gearbox adopts the special gearbox of the crawler tractor independently developed by Chuangtian factory, which has strong power and flexible response. There are 4 forward gears, 1 backward gear, high and low speed gear, and the rear power output has high and low speed gears.

The machine uses unilateral hydraulic power cutoff to reduce wear on the brakes (discs and pads) and extend service life.

Rear-mounted hanger (with suspension) is common with all wheeled tractors and agricultural machinery.

The hydraulic system of this vehicle is a hydraulic transmission oil that is resistant to high temperatures and equipped with an 80 mesh filter, which can effectively filter iron filings and impurities in the transmission oil. Install a hydraulic oil radiator to reduce the transmission oil temperature during use, avoiding damage to the transmission and control failure.

Installing a radiator additionally and increasing the capacity of the water tank can effectively reduce the high temperature generated by the engine during use.

The air filtration is a dry type that can filter a large amount of dust and soil.

The design of installing one drive wheel, six support wheels, two top wheels, and one tension wheel on one side can effectively distribute the weight of the machine onto each wheel by using six support wheels, thereby reducing the load-bearing capacity of the wheels and making them more durable and wear-resistant.

The use of two top wheels can reduce the shaking amplitude of the track to prevent it from derailing.

The sheet metal parts of the machine are made of thickened steel plates of T6 or above, which are sturdy, durable, and not easily deformed.

The surface adopts high-quality spray powder, with strong adhesion and weather resistance.

The diesel tank has large capacity and long endurance.

Using high-quality dual distributor, with long service life and fast response.

Host configuration
Engine	You can choose to match the national 2 full dynamic firewood, Laito, tin firewood, Hui firewood; you can also choose to match the three four countries, tin firewood.
Operation	The hydraulic clutch cuts off the power unilaterally, and the left and right direction levers operate the steering.
Link method	With rear output and rear suspension, the three-point suspension is common to four-wheelers.
Work efficiency	4-6mu/h
Working gear	4 forward gears, one neutral gear, one reverse gear, with high speed, a total of 8 gears.
Fuel consumption	1-2L/mu
Power/speed	44.62kw/2400turn
Optional function

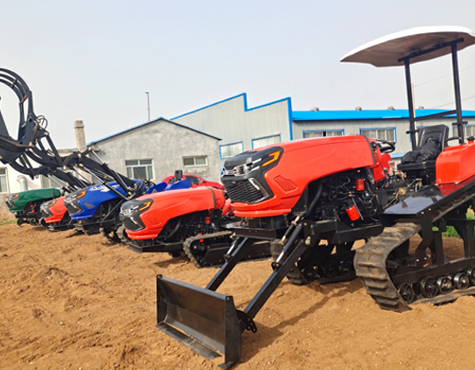

Launch shovel	Width 1.3-1.4 m, height 45cm

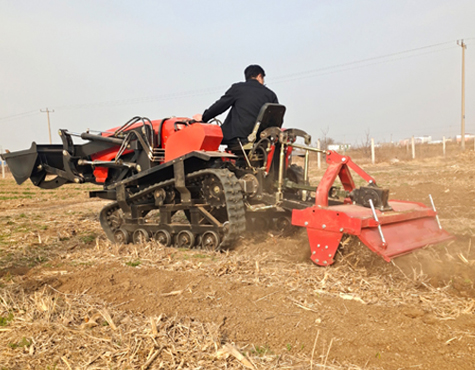

Rototiller	Width 1.3 meters, 1.5 meters, depth 25-35cm
Ditching machine	Offset ditching, width 40cm, depth 40-50cm, depth adjustable (0-40cm)
Straw returning machine	Width of 1.3 meters, 1.5 meters, two-bend straight flick knife design
Grape buried vine
Tree pit digging machine	Diameter 30-50
Simple Canopy
Double share plough

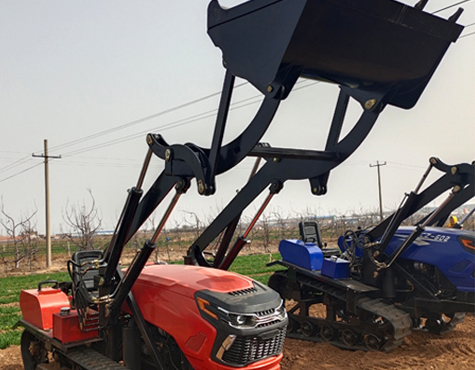

Performance	Crawler tractor with power 50-60 horsepower engine, 60 horsepower emblem diesel engine, tin diesel engine country 2 country three optional. The patented gearbox product has reliable performance. The forward gear has four gears with high and low speeds, a total of eight forward gears, with neutral and reverse gears. The rear output of the gearbox has two speeds, a low speed of 540 rpm and a high speed of 720 rpm. The machine steering adopts hydraulic forced unilateral brake steering, and the steering process comes with cut-off power, which can effectively protect the gearbox and brake system and make it more durable. The machine has rear output, suspension and strong rise and fall, and can be matched with wheeled tractor farm tools. The front of the fuselage can be equipped with a bulldozer and a loader bucket, which can truly realize multiple uses of one machine and agricultural engineering. Machine length 2550cm, width 1450cm, height 1300cm. The design of the crawler tractor has better adaptability than the wheel, the chassis is low, the stability is good, and the crawler adhesion coefficient is large, which can effectively resist the inclined and downhill slopes. Crawler tractors belong to all-terrain operating machinery, with in-situ turning mobility, climbing and off-road performance is stronger.
